Product Display

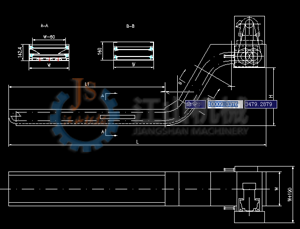

Magnetic scraper

Magnetic scraper

●Fine powdered chips suitable for magnetic (less than 30mm).

●Use a magnet to attract magnetic chips and coarsely filter the coolant.

Performance

Geared Motor	0.2KW 4P AC 220/380V
Chain	C2052H Pitch 31.75mm
Conveying Speed	0.9m/min [50Hz], 1.1m/min [60Hz]
Conveying Capacity	W=300時 0.02m³/h
Safety Device	Forque limiter+LS
Chip Objects	Fine scrap( less than 30mm)
Optional components	Control panel, CE control panel Sleeve shaft type geared motor (50 J\| type) Torque limiter+ Approaching switch type safety device Coolant recovery device (for recovering of coolant mixing with scrap)

Size of each part

W	250,300,350,400,450,500,550,600
α	30°，45°，60°，75°（α=°直線型也可制作）
H	α= 600時246.8以上
L	10000以下
L3	L3>W

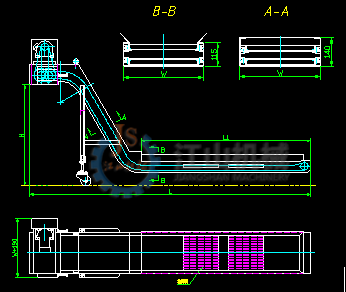

Wedge filter filter type

●Suitable for non-magnetic chips floating in the coolant such as aluminum (less than 50mm).

●The coolant is coarsely filtered with an accuracy of about 200 μm.

Performance

Geared Motor	0.2KW 4P AC 220/380V
Chain	C2052H Pitch 31.75mm
Conveying Speed	0.9m/min [50Hz] , 1.1 m/min [60Hz]
Conveying Capacity	W=300時 0.02m³/h
Safety Device	Forque limiter+LS
Chip Objects	Fine scrap( less than 30mm)
Optional components	Control panel, CE control panel Sleeve shaft type geared motor (50\|l type) Torque limiter+ Approaching switch type safety device Coolant recovery device (for recovering of coolant mixing with scrap)

Size of each part

W	250,300,350,400,450,500,550,600
α	30°，45°，60°，75°(α=0° straight type can also be made)
H	α= 600 hours and 246.8 or more '
L	10000 or less
L3	L3>W

Pre：Drum filter type scraper type + high pressure water tank device
