    	Product Display





















          Drum filter type scraper type + high pressure water tank device
          Drum filter type scraper type + high pressure water tank device


          ●Various filters and drum filter chip conveyors are combined to make them a highly accurate cooling filter.


          ●Combine the high voltage who wants the device into one.


          ●Multiple types of cooling pumps can be configured


          ●Increase filtration capacity and extend coolant life

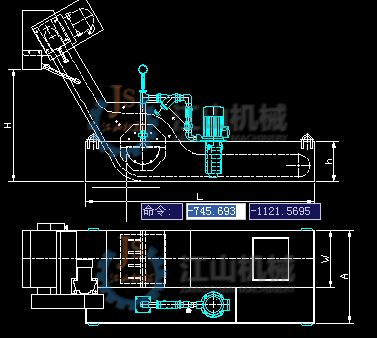

Performance






        W
      401 .8,  601 .8,  801 .8
          c
        2500 or more




         h
        280 or more
          a
          W-106.4 or less




        H
          460 or more
          b
        200 or more




        A


        W+500 or more

          e


      Set up as per the capacity of

 the high pressure pump




        B


        2000 or more

          f


      Set up as per the capacity of the

 high pressure pump


















          Size of each part








      Geared Motor
      0.2KW 4P AC 220V/380V






      Chain
        C2062H Pitch 38.1mm






      Conveying Rate
        1.3m/min






      Conveying Capacity
      W=601.8 0.06m3/h






      Safety Device
      rorque limiter+approaching switch




      Scrap Requirements
      Little non-magnetic scrap (less than 50mm)




      Filter Screen
       80 mesh (50um)





      Precision Filtration
       20um(high pressure part)





       Optional Device


      200L/min

        40L/min

        0.05MPa or more

        W=401 .8
      300Umin

        40L/min

        0.05MPa or more

        W=601 .8
      400L/min

        40Umin

        0.05MPa or more

        W=801 .8




      Optional Device
      Electric control box,coolant pump,nilometer,oil-water separator
