Product Display

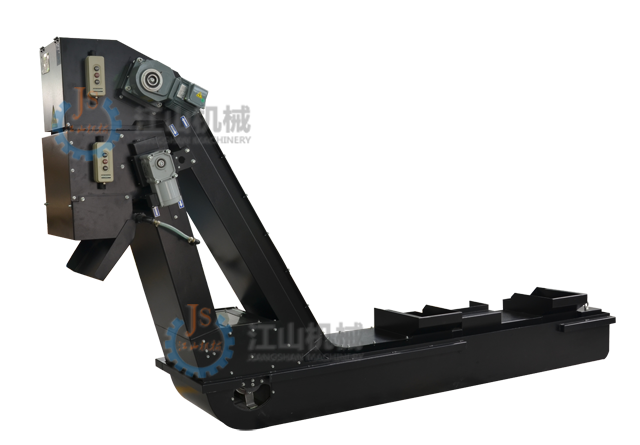

PDM filter backwash type chain plate

PDM filter backwash type chain plate

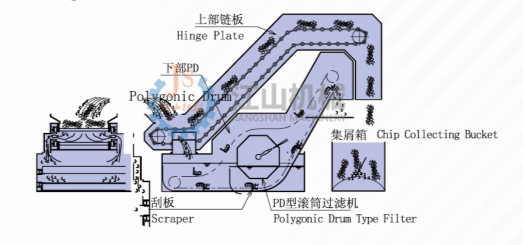

●Suitable for chip handling in the case of long chips and fine chips

●Filter the coolant with a 200 mesh filter polygonal drum filter

●Continuous filtration with automatic cleaning mechanism for backwashing coolant

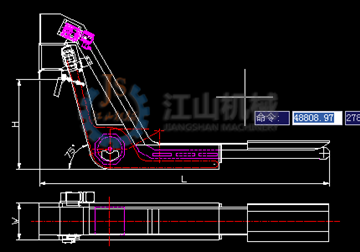

Size of each part

W	400, 600, 800
H	600 or more
L3	280 or more
A	W+250 or more
B	107 or more
C	1450 or more

Performance (upper chip conveyor)

Geared Motor	0.2KW 4P AC 220/380V
Chain	C2052HP pitch 31.75mm
Conveying Speed	When the motor power is 0.2KW 1.0m/min[50Hz], 1.2m/min [60Hz]
Conveying Capacity	0.2KW, W=400 hours 0.32m³/h [50Hz] 0.4m³/h [60Hz]
Safety Device	Torque limiter + proximity switch Torque limiter+approaching switch
Scrap Requirements	Long swarf (50mm or more) Long chips(over 50mm)

Performance (lower filter)

Geared Motor	40W 4P AC 220/380V
Chain	C2050H pitch 31.75mm
Conveying Rate	1 .1m/min [50Hz],1 .4/min[60Hz]
Conveying Capacity	W=600 hours 0.07m³/h
Scrap Requirements	Little non-magnetic scrap (less than 30mm)
Filter Screen	200目 ( 200 u m )
Optional Device	140Umin 40L/min 0.1MPa or more W=400	210L/min 60L/min 0.1MPa or more W=600	280Umin 80L/min 0.1MPa or more W=800
Optional Device	Electric control box,coolant pump,nilometer.oil-water separator

Pre：Magnetic separator
Next：Drum filter type scraper type + high pressure water tank device
