    	Product Display

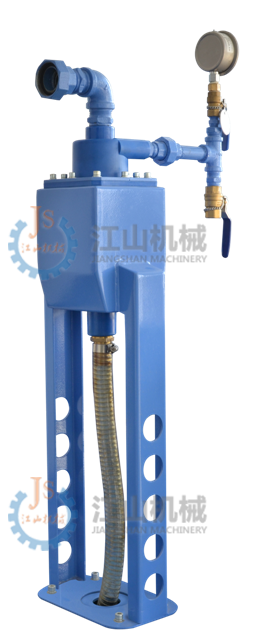

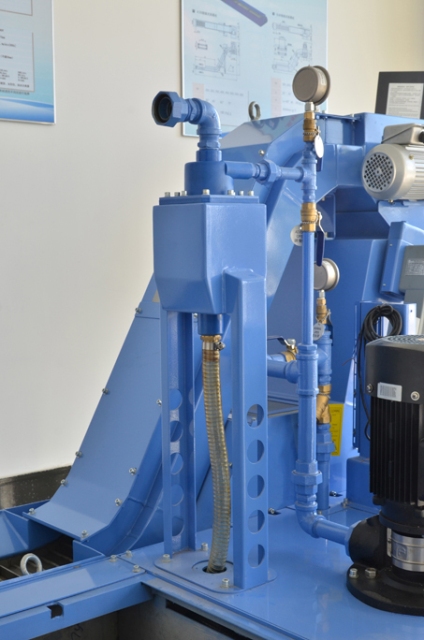

          Eddy current separator








 Eddy current separator
          ●Suitable for secondary filtration of coolant


          ●Space saving, no consumables


          ●Parallel design according to flow



Principle：

The liquid flowing in from the inflow port is vortex-likely lowered, and the foreign matter is separated by centrifugal force. The divided foreign matter descends along the inner wall of the cone and is discharged together with the liquid from the lower nozzle. Further, the liquid from which the foreign matter has been separated forms a rising vortex at the lower nozzle portion, and is exhausted to the discharge port.

















        Conditions of Use

        Performance






          Coolant Objects
          Water soluble coolant,grinding coolant,etc.




          Suitable Particles
          Particles of foundry,grinder,etc.




          Density Of Particles
          1.5 times or more than of the coolant




          Diameter of Particles
          Must be pre-treated into less than 500um




          Inlet Pressure
          0.2MPa～0.35MPa






          Inlet Volume
          1.2 times or more than the treated volume













              Type
          Capacity of Treatment
          Precision of Separation




              HA50


          30～50Umin


           5～20um　




              HAl00
          70～100L/min














          Pre：Water separator
          Next：JSZ paper tape filter
